Vehicle Showroom » Kawasaki » Concours™ 14
Model Quick Search

$13,499.00
$10,749.00
$2,750.00

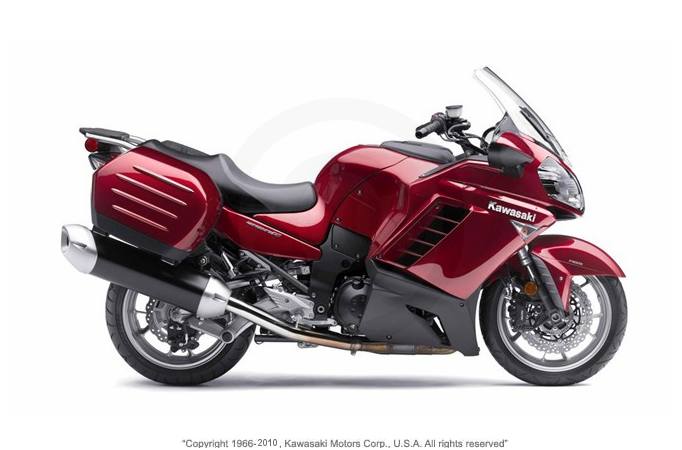

2009 Kawasaki Concours™ 14

09 ZG1400, Red

Now until October 31, 2010
Request a Quote Financing Calculator Request a Brochure Financing Form

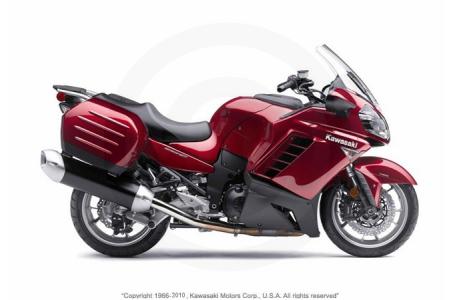

Click here to view full image.
Candy Diamond Red / Flat Super Black
Click on a thumbnail to view larger image.Click on a thumbnail to view larger image.Click on a thumbnail to view larger image.Click on a thumbnail to view larger image.Click on a thumbnail to view larger image.Click on a thumbnail to view larger image.Click on a thumbnail to view larger image.Click on a thumbnail to view larger image.Click on a thumbnail to view larger image.Click on a thumbnail to view larger image.Click on a thumbnail to view larger image.
View All ThumbnailsHide Thumbnails
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

    1,352cc Four-Cylinder, DOHC Engine with Variable Valve Timing (VVT)
    • Tuned to provide smooth power across a wide rev range
    • Variable valve timing improves the engine’s flexibility and efficiency by altering the camshaft profiles to boost low-end and mid-range torque without sacrificing top-end power
    • Compact and narrow engine design
    • Chrome composite plated aluminum cylinder bores are lightweight, durable, and quickly carry heat away from the combustion chamber and piston for supreme durability under high loads
    Gear-Driven Dual Engine Balancers
    • Already in perfect primary balance, dual secondary balancers virtually eliminate unwanted vibrations for extremely smooth engine operation and enhanced rider comfort
    Ram Air Induction
    • Ram air ducts provide a straighter path to the airbox for maximum intake efficiency
    • Supplies cooler, high-pressure air to the engine for maximum power output via the air filter
    Digital Fuel Injection
    • Digital computer feeds the engine exactly the amount of fuel it needs for cleaner emissions and maximum fuel economy
    • 32-bit electronic control unit works with dual throttle valve system to further enhance throttle response and control
    • Throttle bodies are fitted with sub-throttle valves that are controlled by the ECU to provide smooth, precise response similar to constant velocity carburetors
    Digital Ignition
    • Digital Timing Advance enhances low-and mid-range power
    • Four individual spark plug-mounted ignition coils fire each spark plug independently to achieve the optimum timing for that cylinder at that instant
    • Idle speed control system included in ECU for easier starting and warm-up
    Radial Pump Clutch Master Cylinder
    • Hydraulic clutch features a radial-pump clutch master cylinder for smooth and precise clutch engagement
    Monocoque Aluminum Frame
    • Hollow aluminum box sections arch over the engine from the steering head to the swing arm pivot, the frame is narrow, rigid and very light
    • Rigidly mounted engine acts as a stressed frame member to increase the frame’s torsional rigidity and saves approximately four pounds
    • Engine positioned forward in the frame, wheelbase and front/rear weight balance were carefully designed to achieve high-speed stability and responsive handling
    • Massive steering head casting contributes to frame rigidity
    Radial-mount Petal-type Front Disc Brakes
    • Radial design utilizes integrated mounting points at both the top and bottom of the caliper, with the mounting bolts inserted through the rear of the caliper instead of the side/front. This makes the caliper more rigid, which improves brake feel over a wider range of operation
    • Separate brake pads are used for each piston to provide increased cooling efficiency and more consistent brake feel under extreme conditions
    • Petal design front and rear brake rotors provide enhanced cooling and better warp resistance
    • Radial-pump front brake master cylinder improves brake performance and lever feel
    Tetra-Lever Shaft Drive
    • Unique four-link design offsets lifting and squatting tendencies of shaft drive when the throttle is opened and closed, significantly reduces driveline lash during sport riding and provides smooth acceleration when exploiting the engine’s incredible power output
    • Virtually maintenance free, the Tetra Lever system dramatically reduces routine maintenance requirements
    Bodywork Optimized for Sport Touring
    • Fairing design promotes smooth airflow around the rider and passenger with minimal buffeting
    • Integrated, locking hard luggage offers plenty of storage, without disrupting the Concours 14’s style or performance
    • Electrically adjustable vented windscreen
    • Large, comfortable seat offers long-distance comfort for both rider and passenger
    • Glove box mounted on the fuel tank cover
    Full Instrumentation
    • Easy to read speedometer and tachometer
    • Multi-function LCD digital display includes an odometer, two trip meters, fuel gauge, gear position indicator and a clock
    • Controller Area Network (CAN) interface between the gauges uses fewer wires and allows a greater volume of information to be exchanged than traditional instrument panels
    • Kawasaki’s Intelligent Proximity Activation Start System (KI-PASS)
    • Tire pressure sensors
    Specifications
    • Engine Type: Four-stroke, liquid-cooled, DOHC, four valve per cylinder, inline-four with VVT
    • Displacement: 1,352 cc
    • Bore and Stroke: 84.0 x 61.0mm
    • Maximum Torque: 100.3 LbFt @ 6,200 rpm
    • Compression Ratio: 10.7:1
    • Fuel Ignition: Digital Fuel Injection
    • Ignition: TCBI with Digital Advance
    • Transmission: 6-Speed
    • Final Drive: Tetra-Lever shaft drive
    • Rake/Trail: 26.1 degrees/4.4 in.
    • Front Tire Size: 120/70 ZR-17
    • Rear Tire Size: 190/50 ZR-17
    • Front Suspension / wheel travel: 43mm inverted, telescopic fork with adjustable rebound damping and spring preload / 4.4 in.
    • Rear Suspension / wheel travel: Tetra-Lever with stepless rebound damping adjustment and remote spring preload adjuster / 5.4 in.
    • Front Brake Type: Dual floating 310mm petal discs with four-piston calipers
    • Rear Brake Type: Single 270mm petal disc
    • Fuel Tank Capacity: 5.8 gal.
    • Seat Height: 32.1"
    • Curb Weight: 670.3 lbs.
    • Wheelbase: 59.8
    • Overal Length: 89.4 in.
    • Overall height windscreen min / windscreen max: 50.8/55.3
    • Overall width at handlebars / at saddlebags: 30.7 in. / 39.4 in.
    • Color: Metallic Diablo Black / Flat Super Black, Candy Diamond Red / Flat Super Black
    • Warranty: 36 Months
    • Good Times™ Protection Plan: 12, 24 or 36 months

    Specifications

    Engine
    Engine Type Four-stroke, liquid-cooled, DOHC, four valve per cylinder, inline-four with VVT
    Displacement 1,352 cc
    Bore and Stroke 84.0 x 61.0 mm
    Cooling Liquid-cooled
    Compression Ratio 10.7:1
    Fuel System Digital Fuel Injection
    Ignition TCBI with Digital Advance
    Chassis
    Front Suspension 43 mm inverted, telescopic fork with adjustable rebound damping and spring preload; Travel: 4.4 in.
    Front Brakes Dual floating 310 mm petal discs with four-piston calipers
    Front Tire 120/70 ZR-17
    Rear Suspension Tetra-Lever with stepless rebound damping adjustment and remote spring preload adjuster; Travel: 5.4 in.
    Rear Brakes Single 270 mm petal disc
    Rear Tire 190/50 ZR-17
    Dimensions
    Dry Weight 670.3 lbs.
    Fuel Capacity 5.8 gal.
    Wheelbase 59.8 in.
    Seat Height 32.1 in.
    Trail 4.4 in.
    Rake 26.1°
    Transmission
    Transmission 6-Speed
    Final Drive Tetra-Lever shaft drive
    General
    Colors Metallic Diablo Black / Flat Super Black, Candy Diamond Red / Flat Super Black
    Warranty Standard: 36 months; Optional: Good Times™ Protection Plan: 12, 24, or 36 months

    Compare Models

    		 Print








    Year 2009
    Manufacturer Kawasaki
    Model Concours™ 14
    Style Sport Touring
    MSRP* $13,499.00
    Chassis
    Front Suspension 43 mm inverted, telescopic fork with adjustable rebound damping and spring preload; Travel: 4.4 in.
    Front Brakes Dual floating 310 mm petal discs with four-piston calipers
    Front Tire 120/70 ZR-17
    Rear Suspension Tetra-Lever with stepless rebound damping adjustment and remote spring preload adjuster; Travel: 5.4 in.
    Rear Brakes Single 270 mm petal disc
    Rear Tire 190/50 ZR-17
    Dimensions
    Dry Weight 670.3 lbs.
    Fuel Capacity 5.8 gal.
    Wheelbase 59.8 in.
    MPG
    Seat Height 32.1 in.
    Trail 4.4 in.
    Rake 26.1°
    Engine
    Engine Type Four-stroke, liquid-cooled, DOHC, four valve per cylinder, inline-four with VVT
    Displacement 1,352 cc
    Bore and Stroke 84.0 x 61.0 mm
    Cooling Liquid-cooled
    Compression Ratio 10.7:1
    Fuel System Digital Fuel Injection
    Ignition TCBI with Digital Advance
    General
    Speedometer
    Tachometer
    Odometer
    Colors Metallic Diablo Black / Flat Super Black, Candy Diamond Red / Flat Super Black
    Warranty Standard: 36 months; Optional: Good Times™ Protection Plan: 12, 24, or 36 months
    Transmission
    Transmission 6-Speed
    Final Drive Tetra-Lever shaft drive
